Features
How to order
Technical parameters
Dimensions (mm)
Download
Back

Features

● Simple structure, integrated with vacuum pump, long lifetime.

● High vacuum flow, suitable for handling light and porous object like cellphone screen, perforated plate and fiber sheet.

● Easy to install and maintain, cost-effective.

How to order


SLP  40  -  M10  Y  D  -  F1

  ①     ②          ③     ④  ⑤       ⑥


① Series

② Suction cup

    diameter

③ Vacuum pump

     specification

④ Exhaust direction⑤ Vacuum breaking function⑥ Mounting（flange）
SLP

40 - φ40mm

60 - φ60mm

(POM material)

M10 - Airwayφ10mm

M20 - Airwayφ20mm

M30 - Airwayφ30mm

Y - Lateral exhaust+fitting

S - Vertical exhaust+silencer

T - Vertical exhaust+pagoda fitting


Nil- Without vacuum breaking function

D  - With vacuum breaking function

F1 - 55×6mm

F2 - 84×9mm

F3 - 63×11mm

F4 - 95×11mm

F6 - 110×13mm



Selection

Series

Suction cup

diameter

Vacuum pump

specification

Exhaust

direction

Vacuum

breaking

function

Mounting

F1           F2             F3             F4              F6

 SLP40M10YD●-●--
40M10S/T-●-●--
60M10YD●-●--
60M10S/T-●-●--
60
M20S/T--●-●-
60M30S/T-----●











◇ Note：“●”-default, in stock.“–”-unavailable.

Technical parameters

Model

Working

temperature

(℃)

Operating

pressure range

(bar)

Air supply

pressure

(bar)

Max. vacuum

flow

(NL/min)

Max. air

consumption

(NL/min)

Max. vacuum

level

(-kPa)

SLP40-M100~60(Non-freezing)1-75.0320-45014511
SLP60-M100~60(Non-freezing)1-75.0330-55014511
SLP60-M200~60(Non-freezing)1-75.0970-1,1952604.5
SLP60-M300~60(Non-freezing)1-75.01,520-1,6204602.5


Vacuum flow (NL/min) at different vacuum levels (-kPa)


ModelAir supply

pressure

(bar)

Air

consumption

(NL/min)		01.52.53.54.55.56.57.511

Max.

vacuum

level

(-kPa)

SLP40-M105.014545043041042035030025017010011
SLP60-M105.014555053047042035030025017010011
SLP60-M205.02601,1951,1201,050980880----4.5
SLP60-M305.04601,6201,200-------2.5


Air circuit diagram/ Structural diagram



Main parts NOItemMaterial
1Vacuum pump

Aluminum alloy

2Suction cupPOM
3Air inlet fittingCopper alloy
4Connection blockAluminum alloy
5Clamp, Flange Aluminum alloy

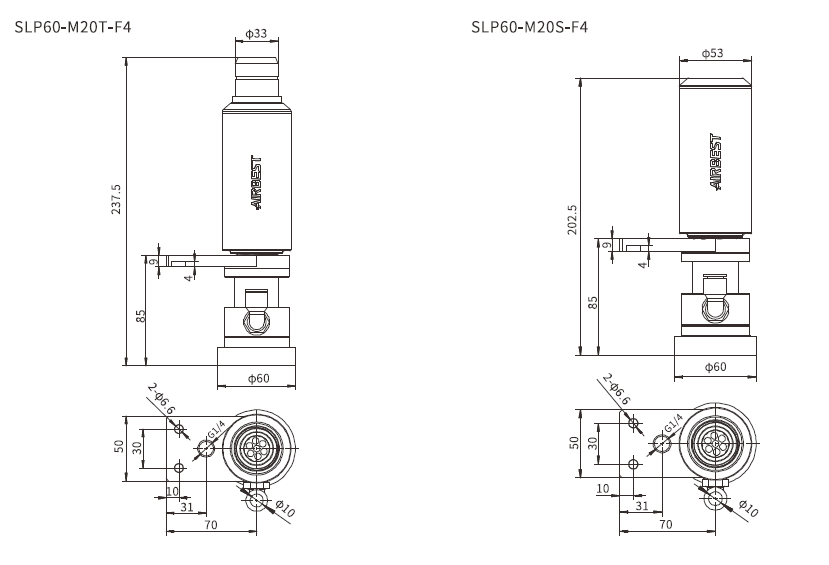

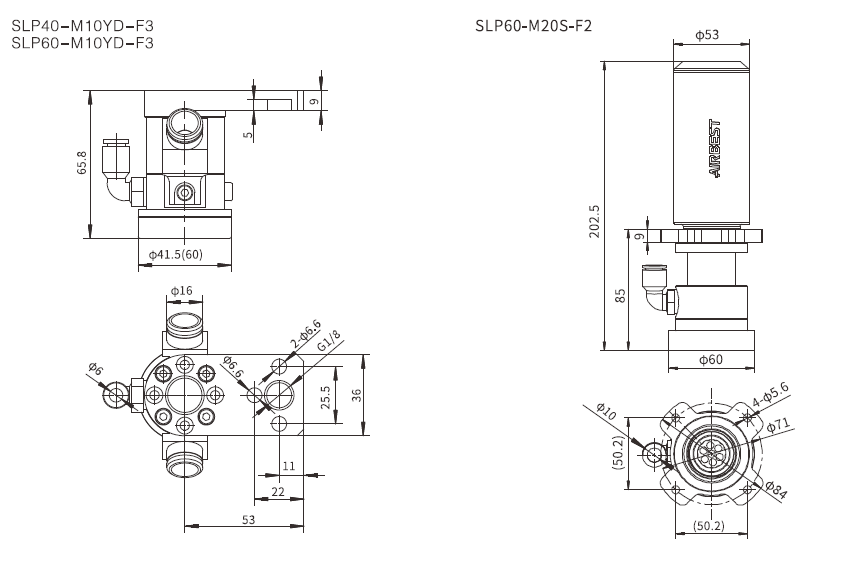

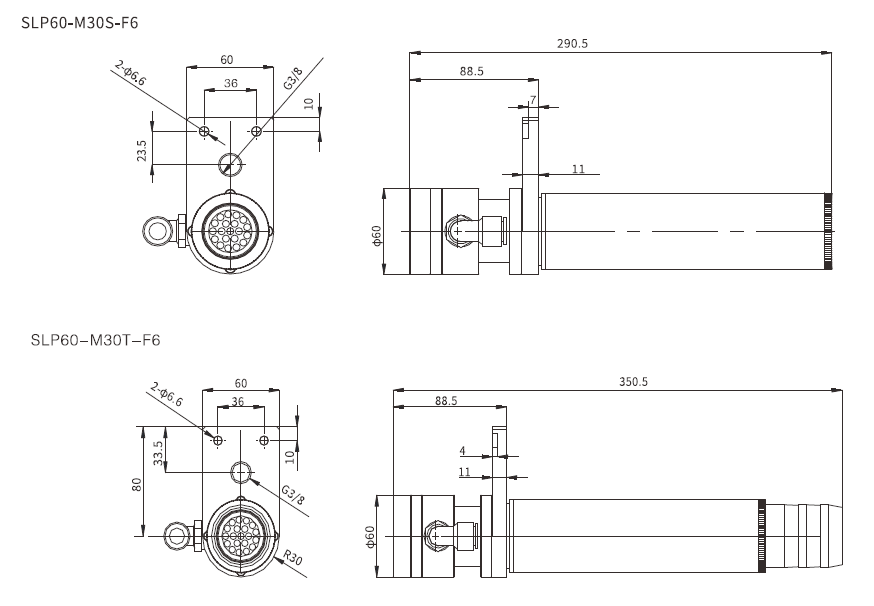

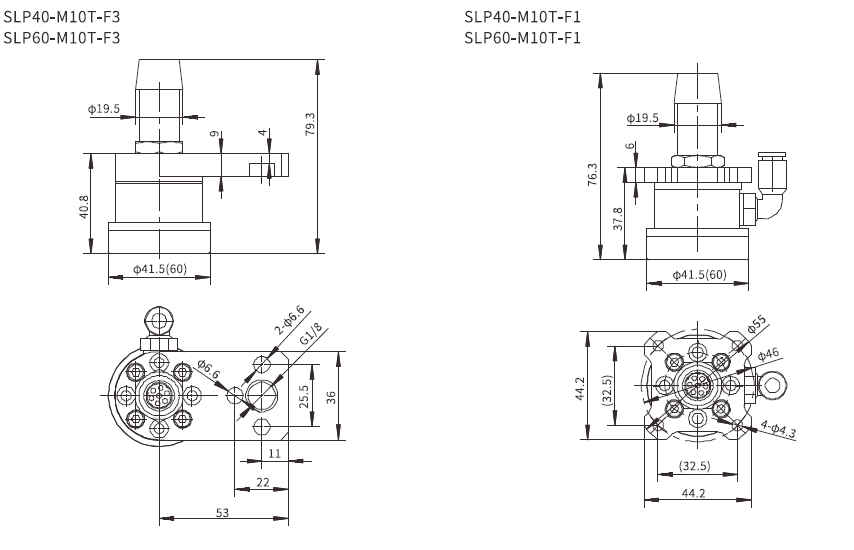

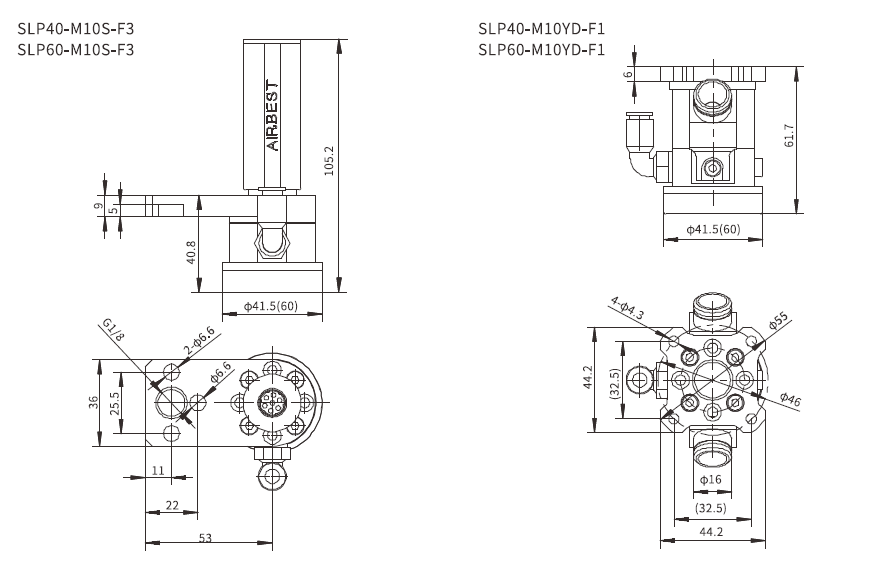

Dimensions（mm）









SLP Series
