Bellows
SBB Series
1.5 Bellows Suction Cup
Search
Category
Features
How to order
Technical parameters
Dimensions (mm)
Download
Back

Features

● 1.5 bellows. It has good sealing performance for workpiece with uneven surface and height compensation during handling.
● Aluminum alloy mounting plate and suction cup are integratedly vulcanized, stable and reliable.
● With soft and tapered lip, and support frame on bottom.



Applications

● Objects with uneven surface

● Steel plate

● Carton box

● Rubber products

How to order


SBB  200  N  -  G4F

  ①       ②    ③         ④


① Series② Diameter③ Material & hardness④ Connection thread
SBB

200 - φ200mm

250 - φ250mm

300 - φ300mm

N - NBR     60 Black

Nil - Through hole φ40

G4F - G1/2 Female thread



Selection

Model/Connection threadNil - Through hole φ40G4F
SBB200-
SBB250-
SBB300-

◇Note: "●"- default, in stock. "-"-unavailable.

Technical parameters

Model

Pull-out force (N)

Inner volume (cm³)

Min.curve radius of workpiece (mm)

Recommended hose dia.(mm)

Weight (g)

SBB20085079035012860
SBB2501,6201,677480121,012
SBB3002,3902,950580121,650

◇ Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without condisdering safety factor. The data may be different according to different workpiece surfaces.

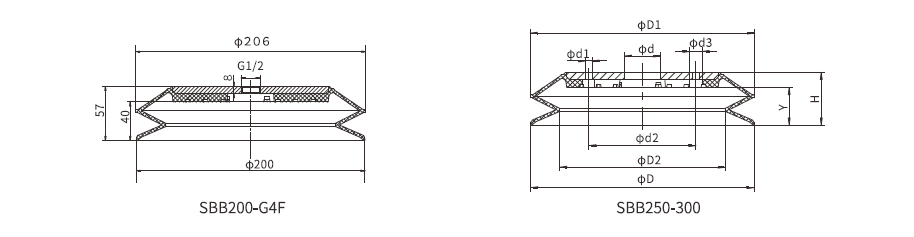

Dimensions(mm)


Model/SizeDD1Hdd1d2d3Y
SBB25025025160404-71204-13.543
SBB30030030677404-71204-13.557

◇Note: Please refer to page 22 for mounting parts selection.
